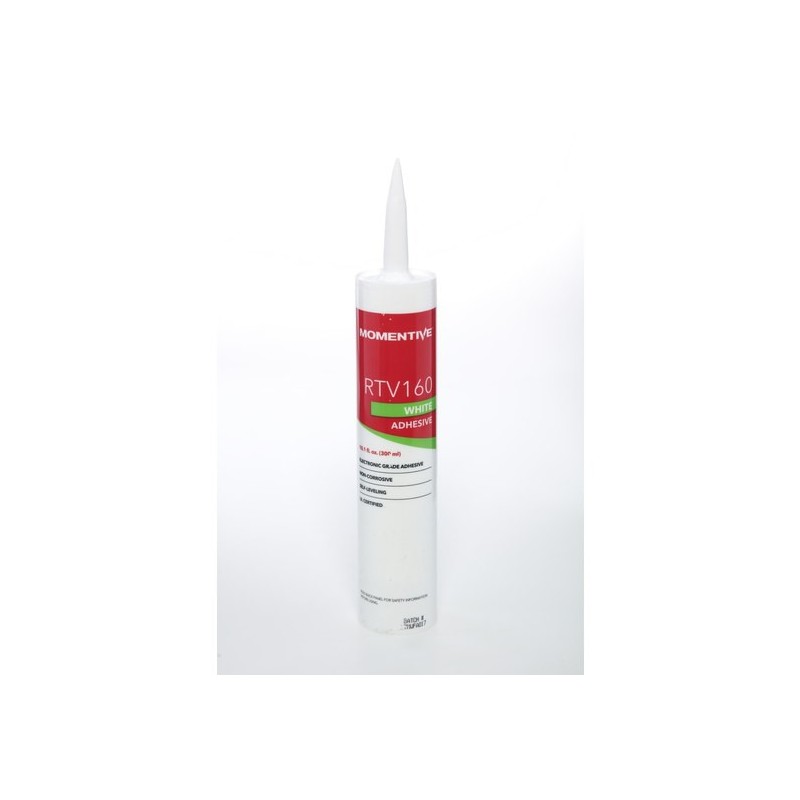

RTV160 (White) - (310ml Cartridge)
GEE9374
Momentive SNAPSIL™ RTV160 (White) – Electronic-Grade, Non-Corrosive Flowable Silicone Sealant
SNAPSIL™ RTV160 is a white, one-component, ready-to-use, electronic-grade flowable silicone sealant designed for applications that require excellent flow into tight spaces and non-corrosive protection of sensitive electronic components. It cures at room temperature upon exposure to atmospheric moisture, forming a tough, resilient silicone rubber that provides long-term environmental sealing without corroding copper, brass, or other acid-sensitive metals.
Unlike standard acetoxy-cure silicones, RTV160 utilises an alcohol-based (alkoxy) cure system, releasing non-corrosive alcohol vapours during cure. This results in a low-odour, non-pungent curing process, making it ideal for use in electronics assembly, aerospace, automotive, and appliance applications where compatibility with delicate conductors and minimal workplace odour are essential.
RTV160’s flowable liquid consistency allows it to easily penetrate small crevices, voids, and hard-to-reach areas—making it especially suited for thin-section potting, conformal coating, and encapsulation of intricate electronic assemblies. It should not be used in sections thicker than 6 mm (¼ inch); for deeper applications, Momentive’s addition-cure or two-component systems are recommended.
- RTV160 - white flowable paste
- RTV162 - white paste
- RTV167 - grey, high-strength paste
Key Features
- Non-corrosive to copper, brass, and silver – safe for sensitive electronics
- Flowable liquid consistency – self-levels to fill micro-gaps and complex geometries
- Alcohol-based cure chemistry – low odor, no acetic acid by-products
- Electronic-grade purity – designed for printed circuit boards, semiconductors, and fine-pitch components
- Room-temperature moisture cure – no mixing, heat, or primers required for most substrates
- Wide service temperature range: –60°C to 204°C (–75°F to 400°F) continuous; short-term up to 260°C (500°F)
- Excellent electrical insulation, moisture resistance, and UV/ozone stability
Typical Applications
- Thin-section potting and encapsulation of sensors, ICs, and microelectronic assemblies
- Conformal protective coatings for circuit boards in automotive and aerospace systems
- Sealing of connectors, relays, and modules where flow into tight spaces is required.
- Applications in confined workspaces where low-odour processing is preferred
Certifications & Compliance
- UL Recognised (File No. E-36952)
- Meets MIL-A-46146 physical requirements
Technical Notes
- Maximum recommended cure thickness: 6 mm (¼ inch)
- Non-corrosive cure – safe for all common electronic metals
- Tack-free time: ~4 hours at 25°C (77°F) and 50% RH
- Full cure (3 mm thickness): ~48 hours; full bond strength develops in 7 days
- Shore A hardness: 25
- Tensile strength: 19 kg/cm² (275 psi)
- Elongation: 230%
- Peel strength: 2 kg/cm (10 lb/in)
- Dielectric strength: 20 kV/mm (500 V/mil)
Packaging Options
- Available in cartridges
