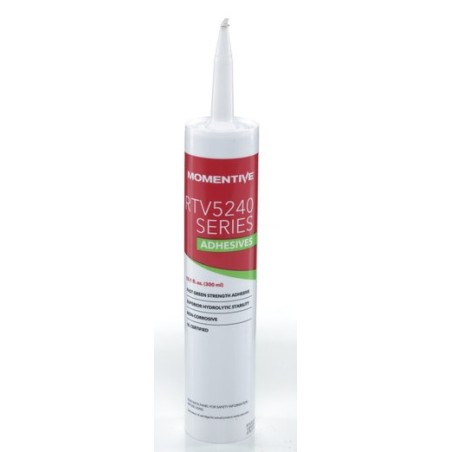

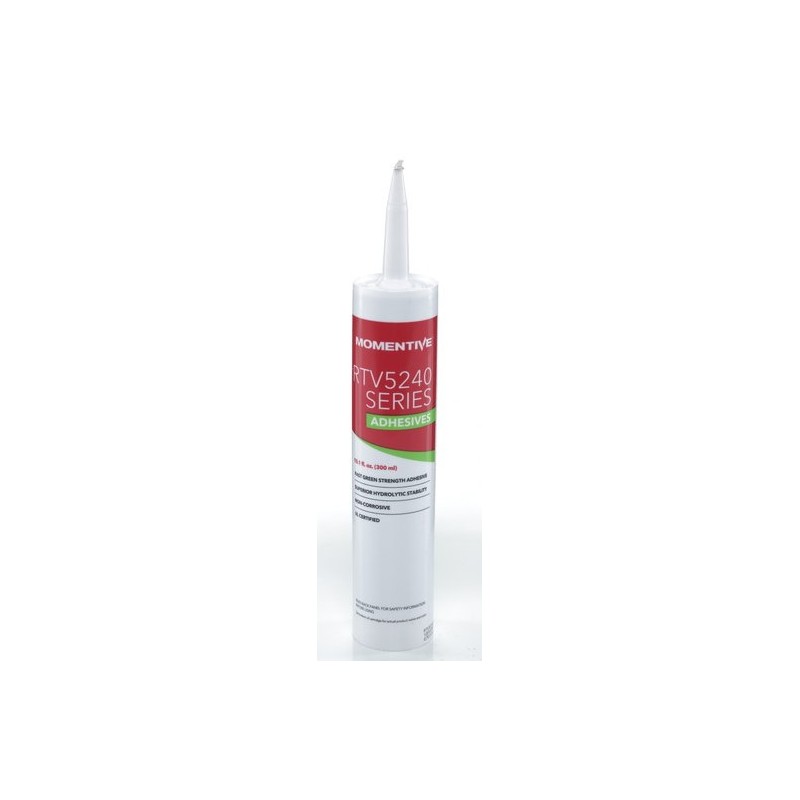

RTV5242 (White) (454gm Cartridge)
GIS9438
SNAPSIL™ RTV5242 (White) – Fast-Cure, Neutral-Cure Electronic-Grade Silicone Sealant
RTV5242 is a white, one-component, ready-to-use, neutral-cure silicone adhesive sealant engineered for high-reliability electronic and industrial applications where fast curing, moisture resistance, and compatibility with sensitive metals are critical. Unlike standard alkoxy silicones, RTV5242 cures up to 4× faster, forming a tough, resilient elastomer that maintains strong adhesion even after prolonged exposure to hot, wet environments.
RTV5242 utilises a proper neutral alkoxy cure system, releasing only methyl alcohol vapour during cure, no acetic acid, no exotherm, and no corrosive by-products. This makes it ideal for use on copper, brass, silver, and other corrosion-sensitive conductors, as well as on painted surfaces and engineering plastics. With excellent hydrolytic stability and UL recognition (File No. E-36952), RTV5242 delivers long-term reliability in demanding aerospace, automotive, appliance, and telecommunications systems.
Key Features
- Ultra-fast cure: Tack-free in 45 minutes; full 3 mm cure in 6 hours
- True neutral cure – non-corrosive to sensitive metals and electronics
- Superior hydrolytic stability – maintains adhesion after 20 weeks in 60°C water
- High tensile strength (2.2 MPa / 320 psi) and 425% elongation for durable, flexible seals
- Primerless adhesion to most metals, painted surfaces, and plastics
- Low sag (2.5 mm) – suitable for vertical and overhead applications
- Wide service temperature range: –60°C to 204°C (–75°F to 400°F)
Excellent electrical insulation:
- Dielectric strength: 20 kV/mm (500 V/mil)
- Volume resistivity: 3 × 10¹⁵ Ω·cm
Typical Applications
- Sealing and bonding of PCBs, sensors, and semiconductor packages
- Gasketing for electrical enclosures exposed to humidity, rain, or washdown
- Bonding of sensitive metal components in automotive control units and aerospace systems
- Applications requiring rapid production throughput without compromising performance
- Ideal for automated or manual bead application in high-volume production
Certifications & Compliance
- UL Recognised (File No. E-36952)
Technical Notes
- Cured hardness: 40 Shore A
- Tooling time: Up to 10 minutes after application
- Maximum recommended thickness: 6 mm (¼ in.)
- Cure by-product: Methyl alcohol (low odour, non-corrosive)
- Avoid curing above 43°C (110°F) to prevent bubble formation
Packaging Options
- Available in 454gm in White, Black and Grey Cartridges
Processing Recommendations
- Apply to clean, dry surfaces – no primer required for most substrates
- For difficult-to-bond plastics or painted surfaces, SS4179 primer is recommended
