- Out-of-Stock

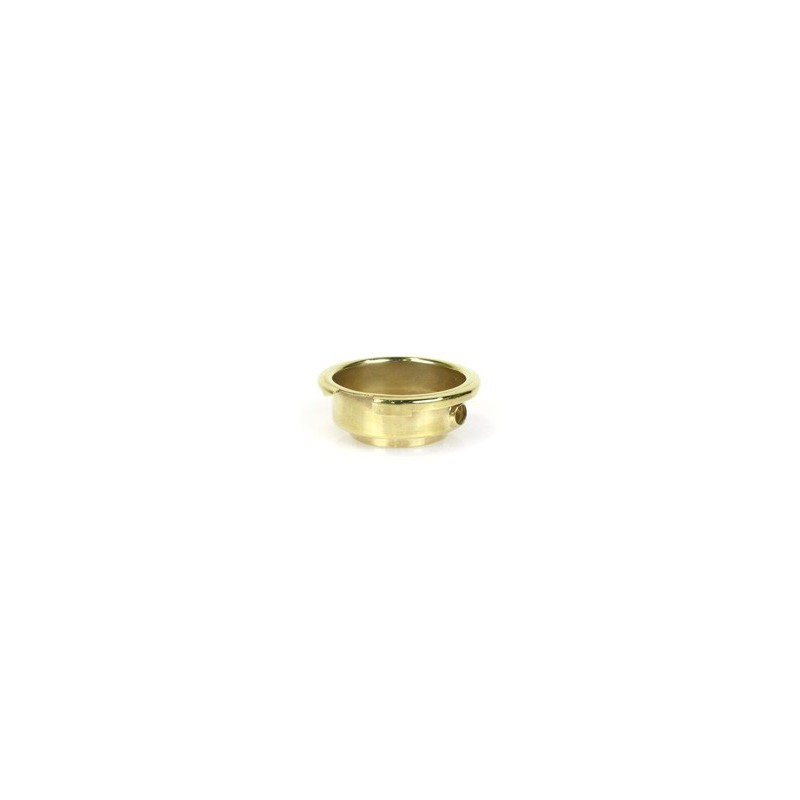

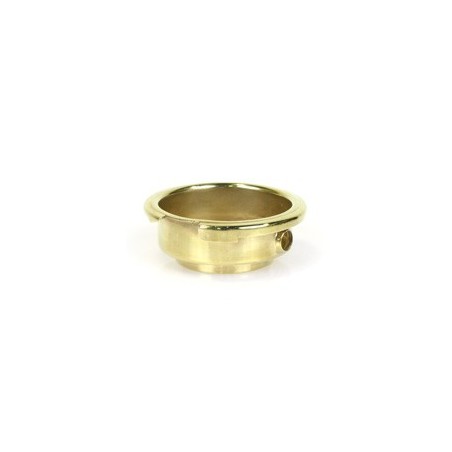

Medium Filler Neck (No Overflow Pipe)
PART NO 5361511169
Brass Filler Neck:
|
2.695” OD / 68 mm 260 Brass, 12-16 psi / 82 kPa – 110 kPa |
|
|
“Short” skirt length |
0.200” / 5 mm |
|
“Long” skirt length |
0.3125” / 8 mm |
|
“Straight” skirt length |
0.375” / 9.5 mm |
Stainless Steel Filler Neck:
|
2.695” OD / 68 mm 304SS, 12-16 psi / 82 kPa – 110 kPa |
|
|
“Short” skirt length |
0.200” / 5 mm |
|
“Long” skirt length |
0.3125” / 8 mm |
- Filler Necks Size - Medium Filler Neck (5361511169)
- Angle of the Overflow Tube Hole - 50 Plus/ minus 2 degrees under the Lowest Cam Profile
- Cam Profile - Range 5.46 / 5.72 mm
- Compliance - Comply with SAE J164 specificants
- Brazing material used - Minimum Silver Alloy 5
- Alignment of the Overflow Tube - 0.312 Plus 0.20 / Minus 0.00
- Bottom Radius Removed of Skirt with Length of 3/8 for the Bottom - Yes 1 43/64 Diameter and length 3/8”
